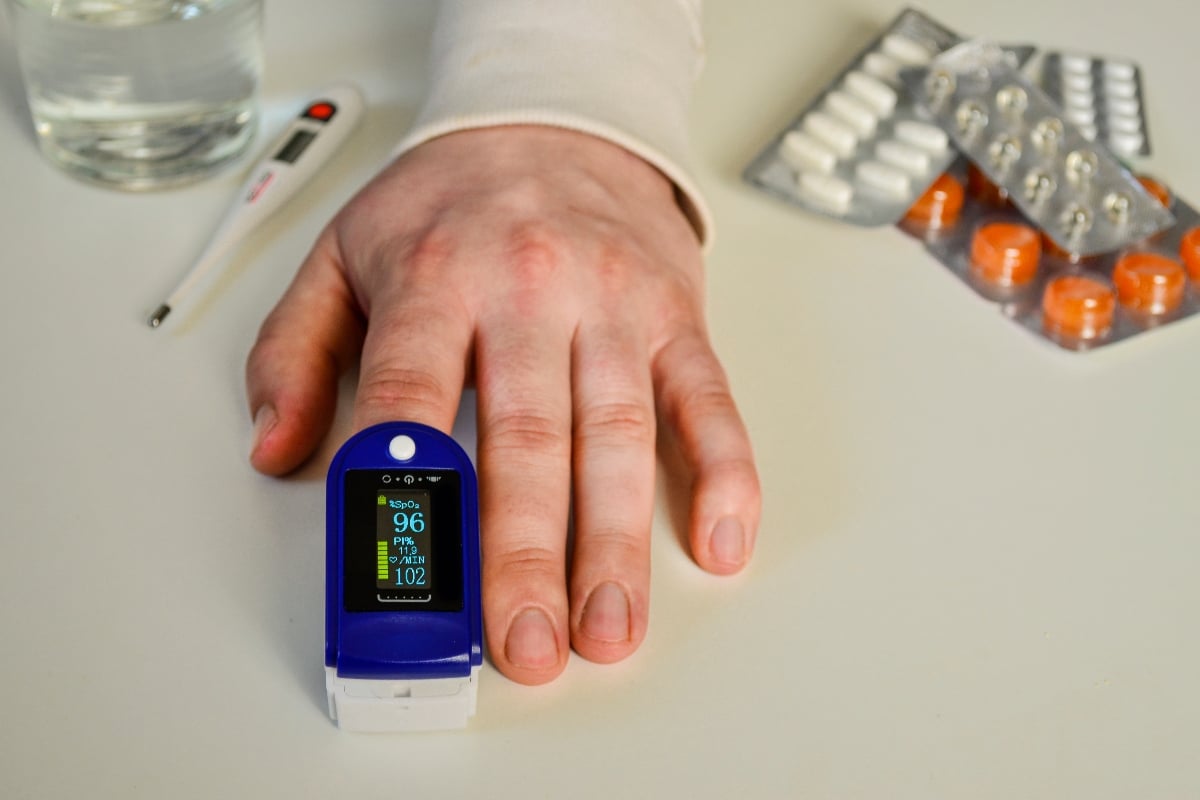

With increasingly compact and wirelessly connected medical technology, miniaturised antennas play a central role in enabling effective communication between devices and healthcare infrastructure. Whether it's a wearable heart monitor or an implantable insulin pump, the performance of a medical device hinges on the delicate balance between its size constraints and wireless efficiency.
Integrating antennas for such critical applications is no easy task. Engineers must adopt compact yet high-performing designs that overcome limitations posed by miniature enclosures and the human body itself. This article explores the key design principles behind modern compact antenna technologies, including PIFA structures and high-dielectric materials, and how they help optimise signal radiation in medical devices.
The major design challenge - size vs signal
Miniaturisation introduces a fundamental engineering trade-off. As antennas become smaller, their radiation efficiency declines. This issue is magnified in medical devices, where small form factors are essential for portability or implantation, but uninterrupted wireless communication is non-negotiable (especially when monitoring vital signs or administering real-time therapy).
To mitigate these trade-offs, engineers must turn to intelligent design techniques and materials that preserve antenna performance even in confined and high-loss environments such as the human body, which readily absorbs RF signals.
PIFA structures as a compact powerhouse
The Planar Inverted-F Antenna (PIFA) is a popular structure in space-constrained devices. With its low profile and self-grounded design, PIFAs are ideal for integrating within enclosures, making them a frequent choice in wearables and implantables.
PIFAs inherently provide a lower return loss and radiation pattern in small enclosures. Their grounded configuration reduces sensitivity to surrounding materials, which is particularly helpful in medical environments where the device may come into contact with skin or other tissue. Furthermore, PIFAs support multi-band operations which are essential for devices that must interface with different wireless protocols such as BLE, LTE-M, and NB-IoT.
The benefits of high-dielectric materials
High-dielectric substrates provide designers with the ability to shrink dimensions further without sacrificing RF performance. By slowing the electromagnetic wave propagation through the material, the antenna’s physical size can be reduced for a given resonant frequency. These materials are particularly effective in embedded and chip antenna designs, often used in ingestible or implantable medical devices.
However, high-dielectric designs require careful tuning and simulation to avoid performance losses due to dielectric loading. When executed well, they allow antennas to operate effectively in tight volumes and still meet strict medical compliance standards. This highlights the need for professional antenna integration.
Integration best practices for medical devices
Antenna integration in medical devices doesn’t stop at design. It must also factor in the device's final casing, placement and operational environment:
- Avoid shielding materials such as metal cases directly over antennas, which can lead to signal absorption and reflection.
- Prioritise edge placement, especially for body-worn devices, to ensure radiation is directed outward rather than into the body.
- Use matched tuning circuits to compensate for detuning effects caused by nearby components or environmental changes.
Major integration challenges in wearables and asset trackers can be overcome by optimising antenna choice and placement in the design phase. In sensitive applications like medical devices, early integration ensures reliability without the need for costly redesigns later.
Why antenna selection matters for medical devices
The implications of poor antenna performance in a medical setting go beyond packet loss; they can affect patient safety, data accuracy and regulatory compliance. With many medical devices now operating on low-power wide-area networks (LPWANs), such as NB-IoT or LTE-M, choosing the right antenna is critical to maintain range and battery efficiency over time.
Compact, efficient antennas improve connectivity and extend operational lifetime, which is a must for battery-powered or implantable devices where replacement is impractical. That’s why integrating antennas that are both performance-optimised and easy to integrate are so important, especially in challenging environments.
Choose the perfect antenna for your medical device
Integrating antennas for compact medical devices means navigating the tight constraints of limited space, strict power budgets and environments that often absorb RF energy. Smart design choices like PIFA structures and high-dielectric materials can help maintain signal efficiency without compromising on size. But integrating the perfect antenna for the specific device will always be the best solution.
That’s where Antenova comes in. Our antennas are engineered for small-form-factor, high-performance applications just like these, making integration simple and performance dependable, even in tough environments. Take a look at our wide range of antennas to help you find the best solution for your design.
For more practical tips on how to avoid common pitfalls, download our guide below to help you choose the right antenna for your next wireless medical device.
